Product Description：

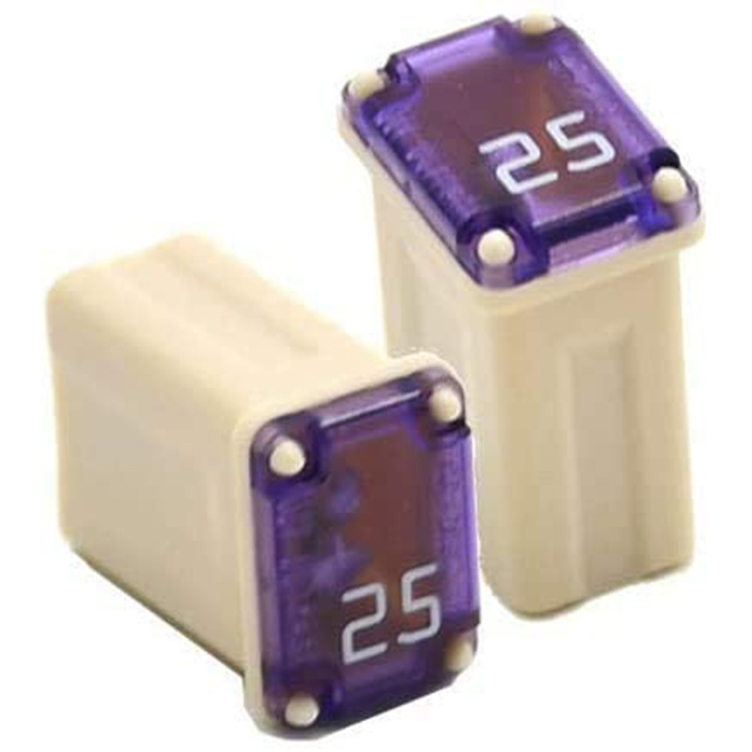

Part No：AD628 M CASE FUSE
Rated Voltage: DC32V
Breaking Capacity: 1000A
Operation Temperature: -40℃ - 125℃
Insertion Force: 44.1N and less
Extraction Force: 4N - 24.5N
Standard Packaging: 4,000
Standard: JASO D612-4

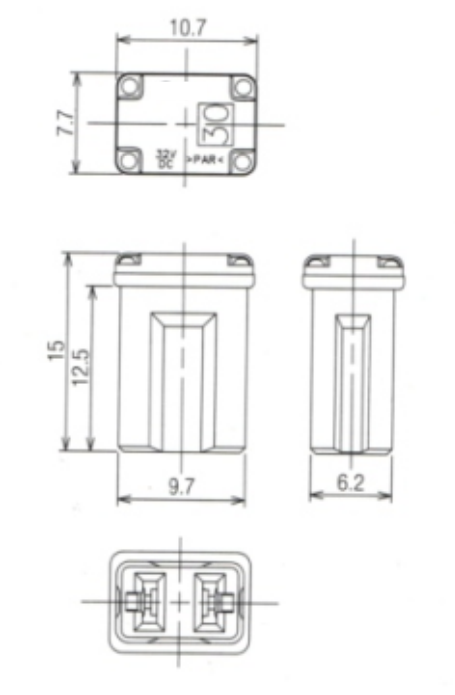

Product Dimensions:
Time-Current Characteristics：
| % of Rating | Opening Time | |
| MINI | MAX | |
| 110 | 360000 | / |
| 135 | 60s | 30minutes |
| 200 | 5s | 60s |
| 350 | 0.2s | 7s |
| 600 | 0.040s | 1s |
Part Number | Current Rating | Voltage Rating (VDC) | Typ. Voltage Drop | Cold Resistance | I2t | Housing Color |
AD633-15 | 15A | 32V | 97 | 5.30mΩ | 295 | Grey |
AD633-20 | 20A | 32V | 94 | 4.00mΩ | 570 | Blue |
AD633-25 | 25A | 32V | 93 | 3.100mΩ | 1370 | White |
AD633-30 | 30A | 32V | 92 | 2.60mΩ | 1030 | Pink |
AD633-40 | 40A | 32V | 98 | 2.10mΩ | 1400 | Green |
Time-Current Characteristic Curves:
Specification (download):
